Products
mauveNet
mauveNet

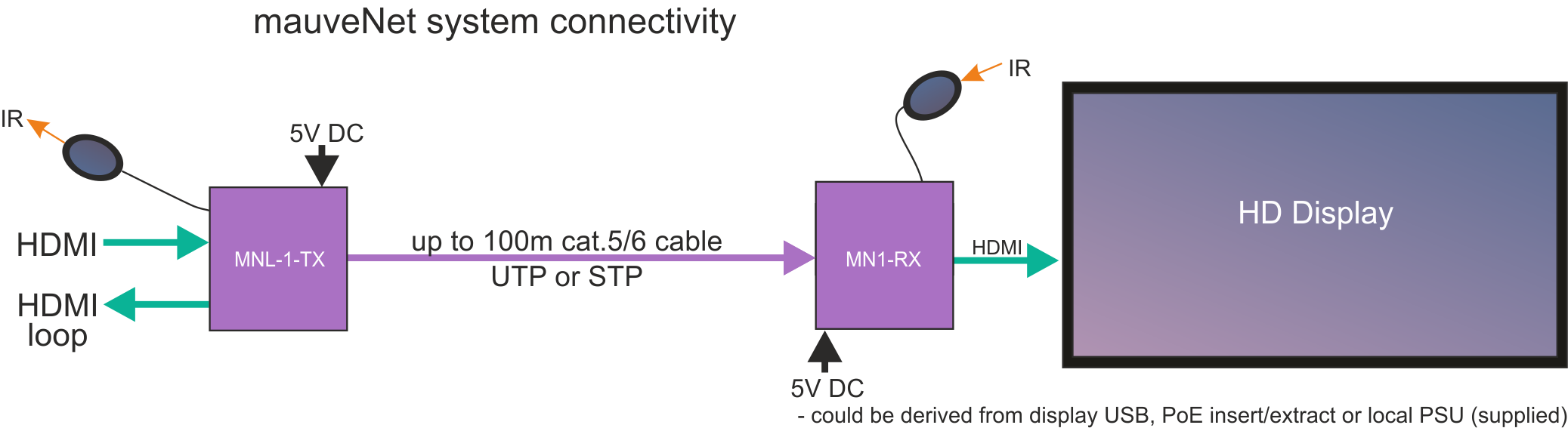

network-compatible HDMI extender with IR and loop-thru
- HDCP-compliant HD or SD resolution
- 120m cat.6 distance. UTP (cat.5) or shielded cable
- Plug and play install
- Signals will pass through network switches and fibre
- loop-thru at Tx end
- IR control
available now:
brochure download MauveNet_web_1.pdf
applications info: MauveNet_apps_1.pdf

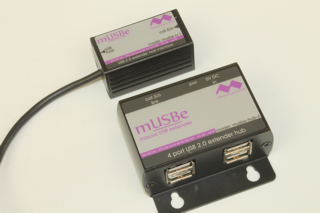

mUSBe – USB extender
mUSBe – MauveCom’s USB 2.0 extender hub

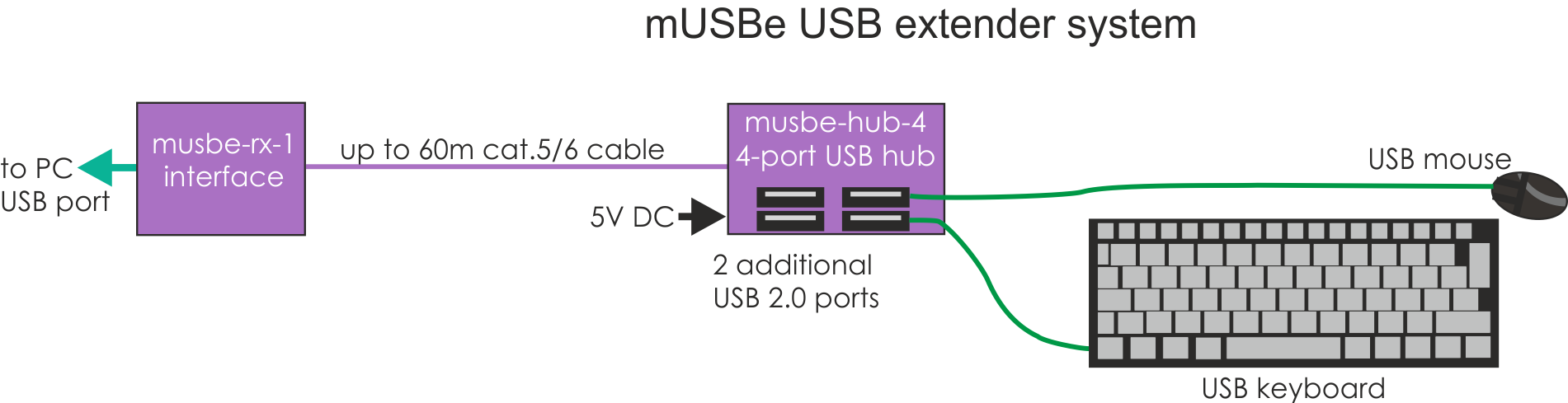

extend keyboard, mouse or up to 4 USB 2.0 devices up to 60m on cat.5/6 cable
Simple to use plug and play operation.
Perfect for museums, visitor centres, retail, interactive signage, corporate AV, education, etc.
Download datasheet here mUSBe brochure.pdf
mauD-1
mauD-1 point-to-point HDMI or DVI extenders
now with improved choice of IR accessories, cables and low-cost ‘ECO’ package
The mauD-1 system allows you to send perfect HD video and audio to a display 100m away via cat.5e or cat.6 cable
The established technology inside mauD-1 enables single cable transmission at 1080p to 100 metres. HDCP compliance means that connecting to Blu-ray, Sky or other protected sources will work perfectly.
In addition to perfect quality video and audio, mauD-1 also gives you 2-way serial comms (RS232) as well as upstream infra red control from your handset.
Customers to date include the 2014 Commonwealth Games, a 70-site cinema chain, Glastonbury 2013, numerous banks, retailers and a massive control centre videowall in Glasgow.
Downloads – datasheet: mauD-1 brochure v1_3.pdf

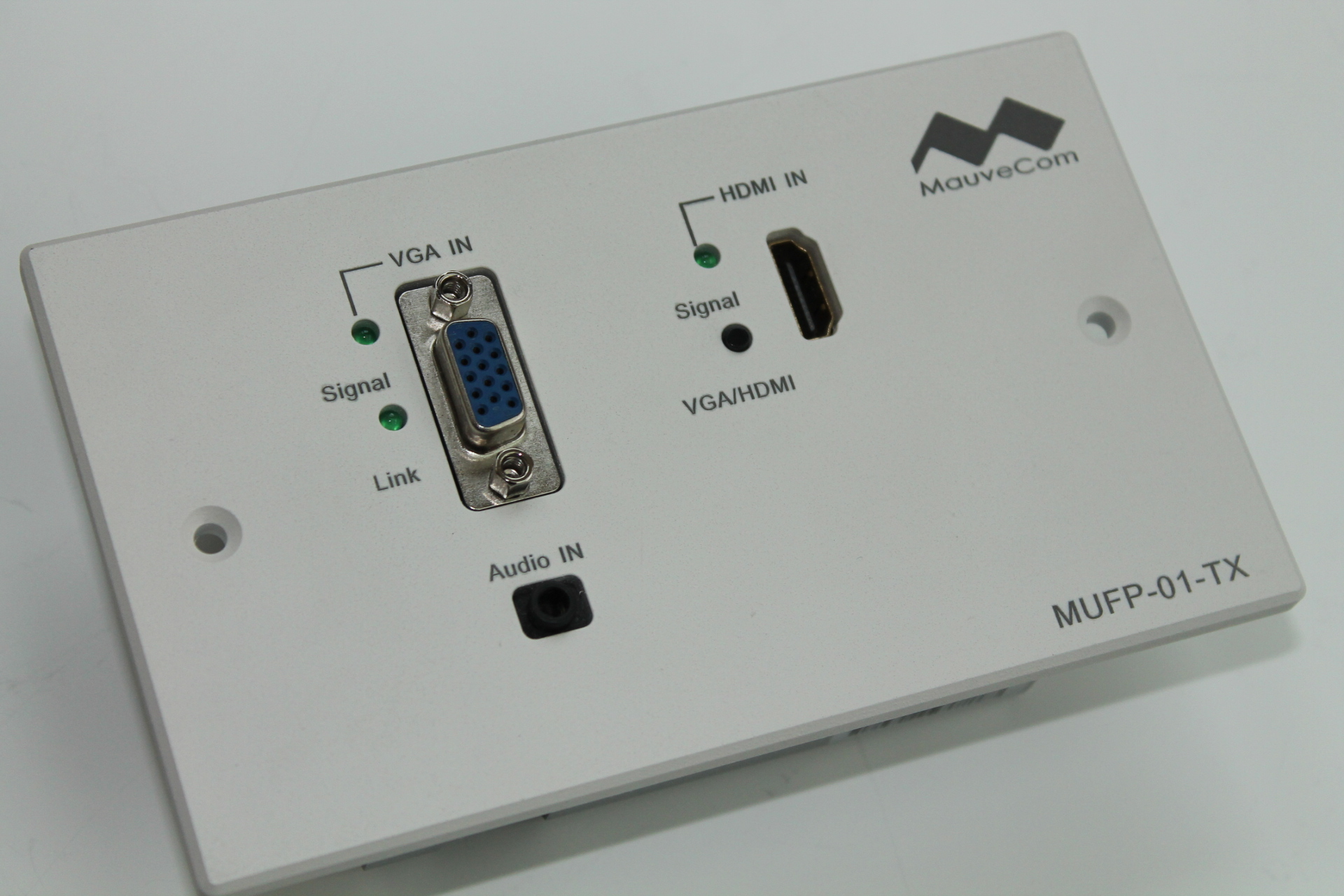

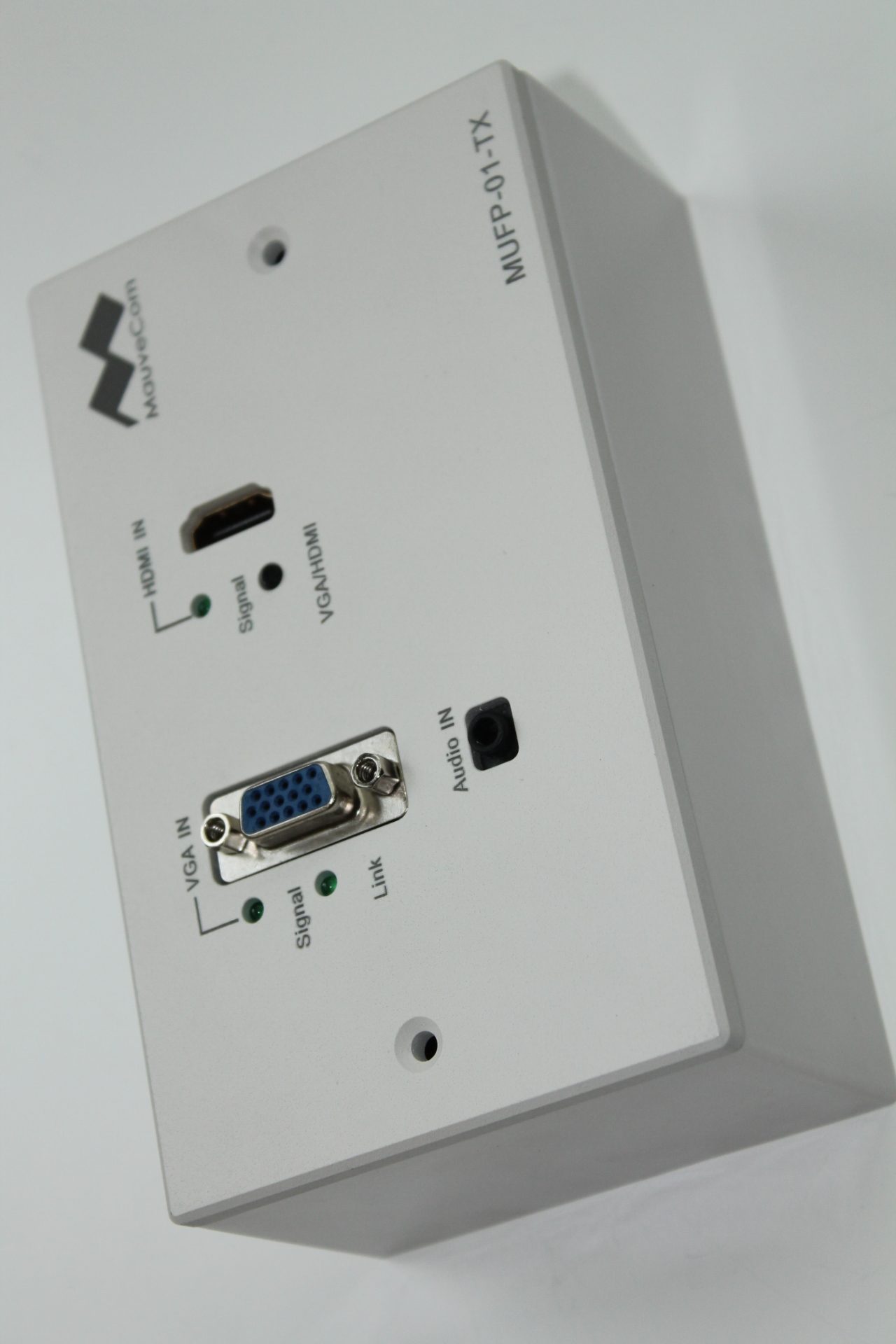

MUFP-01-TX – MauveCom Universal Input Face Plate
MUFP-01-TX Universal Input Face Plate for VGA/HDMI

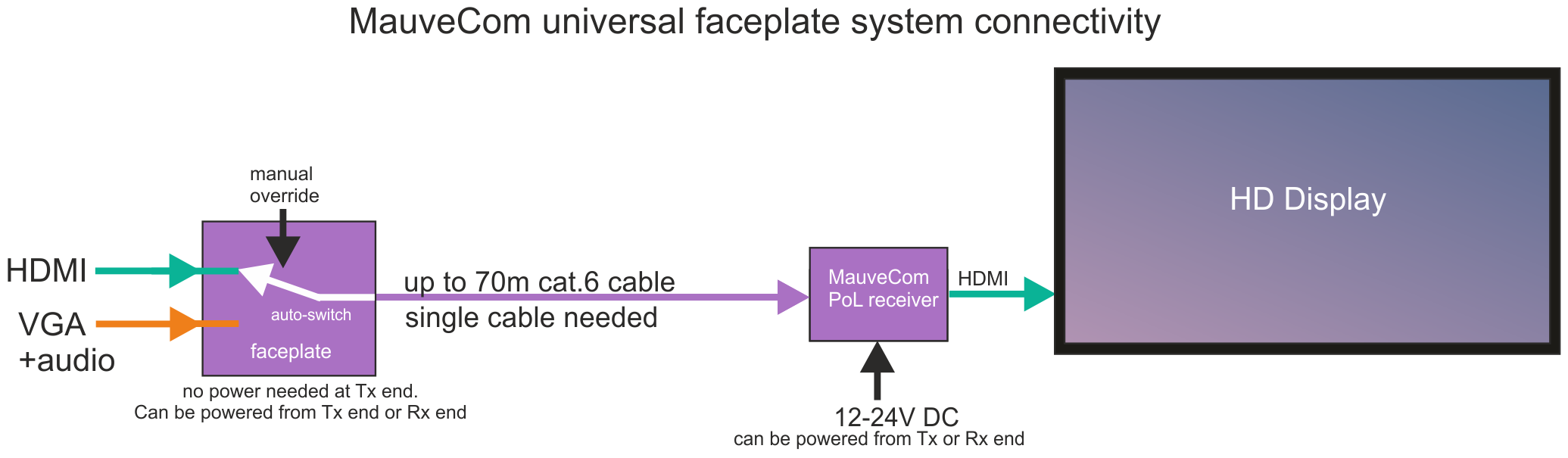

auto-switching VGA/HDMI input face plate
- 2-gang UK face plate
- auto/manual input select for VGA or HDMI
- line powered from either end
- up to 70m extender built-in
due to product changes and pending website re-design please contact us for info
MauveLink-IR
MauveLink-IR – the simplest, most cost effective cat.5/6 AV connectivity system
Yes, it’s standard definition composite AV but MauveLink-IR is still satisfying customer needs now as it has done since 2002. There are 1000’s of systems in the field – virtually bombproof.
Composite video and stereo audio in one direction – both with zero latency. Upstream IR control enables control of satellite TV, terrestrial TV or other AV sources. Unique circuitry in the IR control path means ensures compatibility with all IR handsets tried to date.
You can take a point-to-point single screen system…
…or a 1-to-many 8 screen system expandable to 100’s of screens.
Tu-1A-FP – floorplate/wallplate mounted VGA Tx interface
Want to plug a laptop in to a floorplate or wallplate and send the signal via cat.5/6…?
…the Tu-1A-FP floorplate/wallplate adapter is back.
Compatible with mau-jo and legacy Duplicat systems
available now PDF download here
VGA-SPLIT-2 VGA splitter amp
drive back-to-back displays from a single mau-jo VGA receiver…
The VGA-SPLIT-2 takes a single VGA signal and turns it in to 2 VGA signals – without needing a PSU
Yes, passive VGA splitters have been around for a while but they’re horrible. Reduced brightness, ghosting or even loss of pictures is the norm. But the VGA-SPLIT-2 is different thanks to active electronics driving the outputs at correct levels with correct impedance matching. When connected to the VGA o/p of a mau-jo receiver, the VGA-SPLIT is powered-up via the VGA cable. The same is true of most, but not all PC/laptop outputs. It’s not magic but it’s nice to pretend it is.
The original VGA-SPLIT-2 has almost sold-out and is being replaced by an improved full HD version in an extruded aluminium enclosure. This will be available in Feb 2014
mau-jo VGA one-to-many solutions
want to implement a high quality digital signage network?
mau-jo VGA distribution systems can take your content and deliver it at full HD resolution up to 300m away using a single cat.5e or cat.6 cable. If you’re looking for an HD delivery system for the last 300m which just works then VGA is still the way to go. mau-jo can be found in 100’s of sites including major cinema chains, banks, retailers, etc.
By choosing the best, low power components and providing belt and braces i/p and o/p protection, mau-jo systems enjoy cool-running and enviable reliability in the field.
mau-jo disribution systems are available as 1-in 2-out, 1-in 8-out and 1-in 16-out. Further expansion is easy thanks to loop-thru facilities.
Product info downloads:
Transmit end – distribution amplifiers
8-way distribution amplifiers – DA-0108
Receivers
0-300m receive interfaces with skew correction
Installation note downloads:
mau-jo VGA one-to-one solutions
want to send a VGA signal from one part of a building to another via cat.5/6 cable?
This is easy using a mau-jo Tx/Rx combo. Simply plug-in the VGA signal at the Tx end, connect the display at the Rx end and join the two units with cat.5/6 cable. You can choose which end you plug the power in. Connected.
- 300m of cat.6 at full HD
- no need for power at the display end.
- power from either end
- VGA or audio, RS232 sent on the same cable
- robust low power design for long service life
- made in UK
Product info downloads
Transmitters
new Tu-1 – an ultra compact mau-jo Tx interface
mau-jo Tx units in 19″ 1U rack – T-0404-19 range
new mau-jo floorplate/wallplate mounted Tx unit – Tu-1A-FP
Receivers
new 0-300m receive interfaces with cat.6 skew correction
